| Tribute 9.5 -30 BHP |
| Type: Steam Boiler |
| Size Range: 9.5, 10, 15, 20, 30 BHP |
| Primary Application: Laundries, Drycleaners, Industrial / Commercial |
| Burner Available: Gas fired only * Low emissions burner standard. |
| Design Pressure Range: Standard: 150 psig Custom: Up to 500 psig |
| Efficiency: Up to 84 % |
FEATURES:
- Rugged and proven vertical Edge style pressure vessel design
- Advanced burner technology with high turndown performance and variable-speed fan
- Standard low emissions <20ppm NOx
- Small footprint – compact design
- Built/Certified to ASME, CSD-1 and other applicable codes, UL Packaged Boiler
- Very quiet operation with HMI controls
- Premiere industrial / commercial vertical tubeless boiler
DURABLE AND RELIABLE CONSTRUCTION

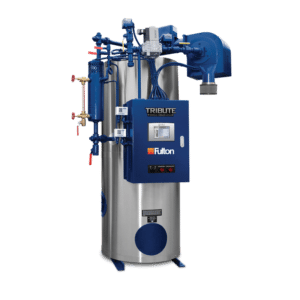

The Tribute® is the latest and most advanced vertical tubeless boiler from Fulton. The name “Tribute” pays homage to founder Lewis Palm’s development of the vertical tubeless boiler many decades ago. The Tribute combines Fulton’s time-tested pressure vessel design with state-of-the-art controls and burner technology.
This new technology includes an advanced pre-mixing style burner and variable speed fan. This design yields low emissions with high turndown performance and efficiencies up to 84%. In addition, we have designed our own state-of-theart control system to display boiler operations. The result is a premier industrial / commercial steam generator, with the same rugged construction that you get with every Fulton boiler.
STATE-OF-THE-ART CONTROLS
The Tribute boiler uses a state-of-the-art control system to control and display boiler operations. The Synex Controls SC-750 monitors boiler parameters such as stack temperature, steam pressure, burner status and alarms. The easily-configured touchscreen interface eliminates guesswork and enhances operator / BMS interfacing.
