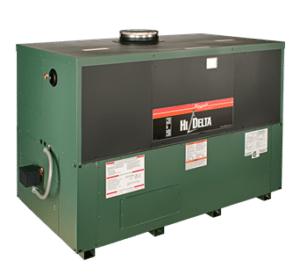

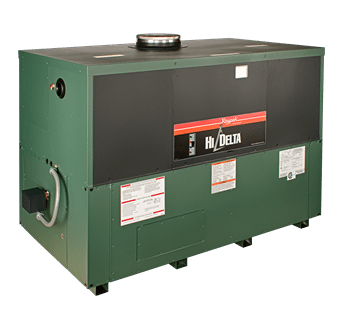

Raypak HI DELTA ® Water Heater, 992C-2342C

Raypak

Model: 992C-2342C

Raypak's family of Hi Delta water heaters feature 85% efficiency, 105ºF minimum inlet water temperature, and a status display and on-board diagnostic center, English, no codes.

Category: Commercial Water Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

BASIC DATA

Model Number	Full Input in (BTUH)	Flue Dia.	# of Stages
WH8-992C	990,000	10″	3
WH9-1262C	1,260,000	12″	4
WH9-1532C	1,530,000	12″	4
WH9-1802C	1,800,000	14″	4
WH9-2002C	1,999,000	14″	4
WH9-2072C	2,070,000	14″	4
WH9-2342C	2,340,000	16″	4

Features:

85% Efficiency.
CAT I vertical venting, CAT III sidewall venting. No extractor required for sidewall applications up to 70ft on room air.
All models Indoor/Outdoor certified.
Patented burner “security blanket” enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
105ºF minimum inlet water temperature.
Brass headers with copper finned tube heat exchanger. Glass-lined, cast-iron headers and cupro-nickel tubes available as options. AB 1953 compliant.
VERSA IC® Control Package with LCD Display.
Status Display Lights.
Cascade control of up to 4 units, no external sequencer required.
Diagnostics Center with History, English, no codes.
Modbus RTU BMS port (RS485).
0-10 VDC BMS Interface (Setpoint or Direct Drive).
Ducted combustion air capable. TruSeal® CSA-Certified direct-vent available.
Models 992B-2002B certified to SCAQMD Rule 1146.2. Meets all Low NOx regulations.
Model 2002 available for natural gas only. Other models available for Natural gas or propane.
