JP Trading Inc.>Commercial Boilers>Thermal Fluid Heaters>Fulton Hopkins 2-Pass Horizontal Thermal Fluid (hot oil) Heater
  • Hopkins 2-Pass Horizontal Thermal Fluid (hot oil) Heater

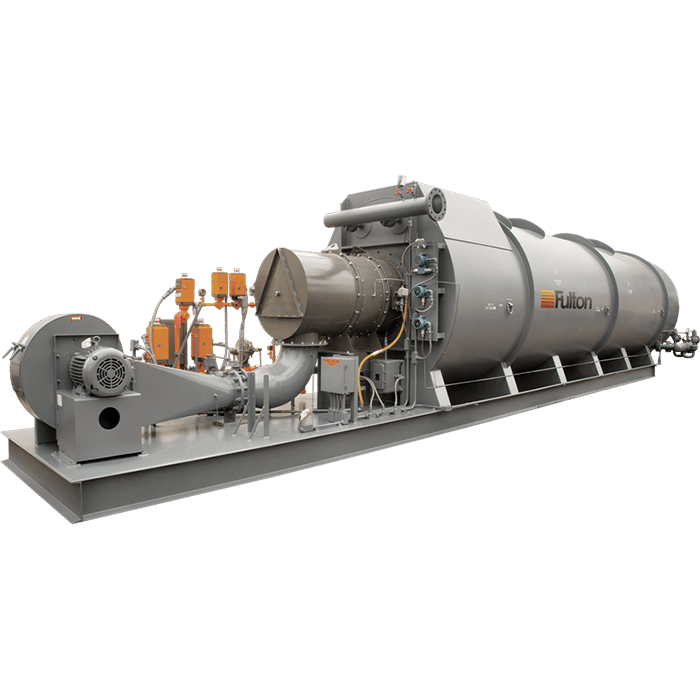

Fulton Hopkins 2-Pass Horizontal Thermal Fluid (hot oil) Heater

Fulton

Model: HPN

  • No High Pressure with Thermal Fluid
  • Multiple Fuel Options
  • Low maintenance

The Hopkins horizontal coil design provides a 2-pass design that has been in production since 1912. The thermal fluid coil is designed for ruggedness and long life. It utilizes a large radiant chamber and ample heating surface, lowering heat flux rates, improving thermal fluid life by reducing oxidation. This heater is available from 500,000 BTU/hr to 40,000,000 BTU/hr output and maximum operating temperatures up to 650°F (340°C).

This heater is designed, built and tested in accordance with ASME Code Section I or ASME Code Section VIII, Div. 1. We offer Low NOx natural gas burners for 30 ppm NOx emissions compliance as a standard option.

Category: Commercial Thermal Fluid Heaters

Rated 4.5/5 based on 11 customer reviews

Request More Information Or Quote

KEY FEATURES

  • Horizontal 2-Pass Design
  • 1,000,000 BTU/Hr to 40,000,000 BTU/Hr Output
  • Heaters are Built and Tested to ASME Code Section VIII Div. I as standard. ASME Code Section I is available upon request
  • Operating Temperatures to 650° F
  • Modulating Gas, Oil or Dual Fuel Burners
  • Alternative Fuel Capabilities
  • Open Protocol Burner
  • Skid-Mounted Systems Available, Including Circulating Pump and Expansion Tank
  • Customized Controls and Coil Designs Available
  • Water – Glycol Heaters Available
  • Available With or Without Integral Expansion Tank

MODELS HPN 100S 200S 350S 600S 800S 1000S 1200S 1400S 1600S 2000S 2400S 3000S 4000S
Specifications
Heat Output Million BTU/hr 1 2 3.5 6 8 10 12 14 16 20 24 30 40
Million Kcal/hr 0.25 0.5 0.875 1.5 2 2.5 3 3.5 4 5 6 7.5 10
Flow Rate-Standard *1 GPM 75 150 265 425 600 725 900 1050 1200 1500 1800 2250 3000
M3/min 18 35 61 97 137 165 205 239 273 341 409 511 682
Flow Rate-Low Flow *2 GPM 40 75 135 225 300 375 450 525 600 750 900 1125 1500
M3/min 10 18 31 52 69 86 103 120 97 171 205 256 341
Circulating Pump Motor-STD HP 7.5 15 20 30 40 50 60 75 100 100 125 150 200
kW 5.6 11.2 14.9 22.5 29.8 37.3 45 56 75 75 93.2 111.8 149
Circulating Pump Motor-LF HP 7.5 7.5 15 20 30 30 40 30 40 50 60 75 100
kW 5.6 5.6 11.2 14.9 22.5 22.5 29.8 22.5 29.8 37.3 45 56 74.5
Blower Motor HP 1/3 1 2 7.5 10 10 5 7.5 7.5 15 20 25 30
kW 0.25 0.7 1.5 5.6 7.5 7.5 4.3 5.6 5.6 11.2 14.9 18.6 22.5
Light Oil (approx. fuel usage)*3 GPH 8.8 17.5 30.6 52.5 70 87.5 104.9 122.4 139.9 174.9 209.8 262.3 349.7
LPH 33.3 66.2 115.8 198.7 265 331.2 397 463.3 529.5 662 794 992.8 1324
Natural Gas (approx. fuel usage)*3 FT3/hr 1,334 2,667 4,667 8,000 10,667 13,334 16,000 18,667 21,334 26,667 32,000 40,000 53,334
M3/hr 37.4 75 131 224 299 373.4 448 522.7 597.4 747 896 1120 1493.4
